AQR320

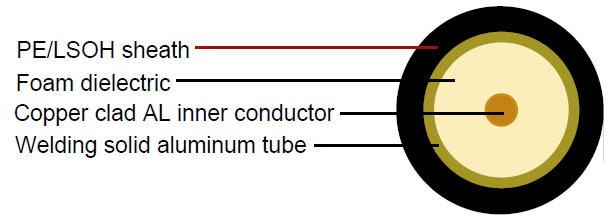

Construction :

  • Inner conductor Copper-clad Aluminium wire Φ1.80 mm
    Dielectric Foam PE Φ7.47 mm
    Outer conductor Welding solid aluminum tube Φ8.13 mm
    Sheath PE/Flame retardant PE Φ10.03 mm
    Messager   optional
  •

Electrical & Mechanical Characteristics :

  • Impedance 75±5 Ohm
    Nominal capacitance 50 pF/m
    Velocity of propagation 87%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 10.6 Ohm/Km
    Outer conductor resistance 3.25 Ohm/Km
    Installation temperature range -40°C - +85°C
    Operating temperature range -40°C - +85°C
    Screening effectiveness 135 dB
    Cable weight (approx.) 70 kg/km

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation(dB/100ft)
    5 0.79 0.24
    55 2.76 0.84
    250 6.10 1.86
    300 6.69 2.04
    350 7.38 2.25
    400 7.81 2.38
    450 8.27 2.52
    500 8.92 2.72
    550 9.35 2.85
    600 9.78 2.98
    750 10.96 3.34
    865 11.87 3.62
    1000 12.76 3.89

Return Loss :

  • 5-30 MHz >30dB
    30-470 MHz >30dB
    470-1000 MHz >30dB
